Organics Trommels

Building on the success of the 550T, we are introducing a new range of mobile trommels tailored for the organics industries.

518T

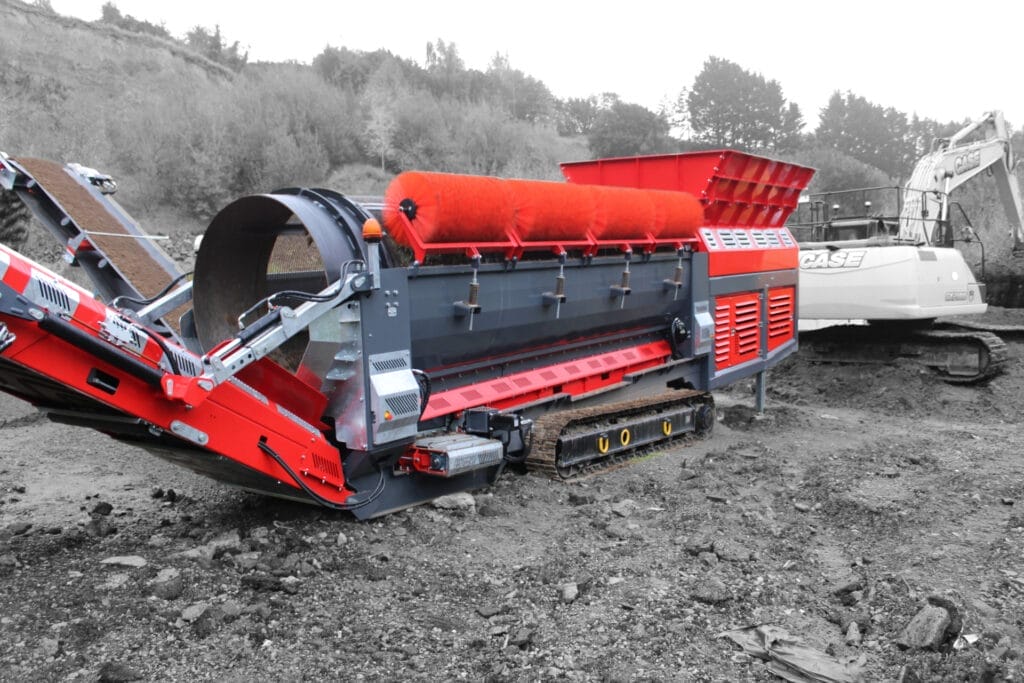

A red and black industrial trommel screen machine, used in concrete recycling equipment, sits on rough ground at a worksite, with an excavator visible in the background.

  • Ranoworks u003cmark style=u0022background-color:rgba(0, 0, 0, 0)u0022 class=u0022has-inline-color has-theme-palette-1-coloru0022u003e518Tu003c/marku003e

    Designed for industries handling sand u0026amp; gravel, construction u0026amp; demolition waste, compost, and more, the 518 Trommel sets a new benchmark for efficiency and durability.
518T Organics Trommel

Engineered for Efficiency, Built for Durability!

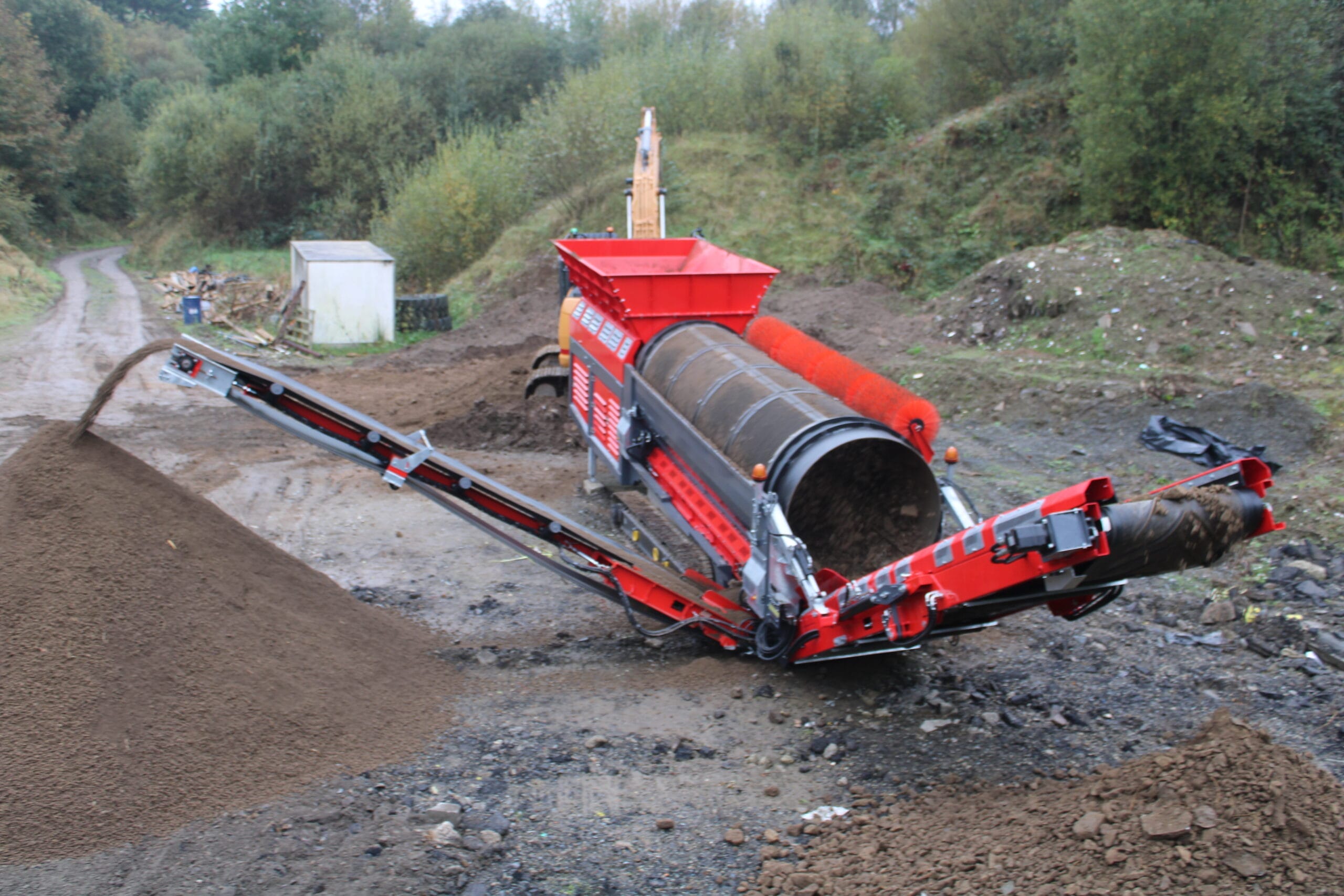

A trommel screen machine, often paired with a vibrating screener, processes soil as an excavator feeds material in, separating and discharging soil onto a pile via a conveyor belt.

FASTER PROCESSING

The 518T has been built with a larger collection system & oversize belts, driven by an advanced CAT C3.6 100kw Engine. This means increased processing capacity for your operation.

A red and black tracked stacker processes earth on a construction site, efficiently separating soil onto a conveyor belt and forming a pile.

Load-Sensing Drum works in parallel with the feeder system, continuously monitoring material input and
output. This intelligent system adjusts the feeder speed to ensure optimal screening performance.

High Performance Screening Solution for Organics

The 518T is optimized for processing organic materials such as wood chips, compost, and green waste, providing efficient solutions for the growing sustainable energy and recycling sectors.

High Capacity

A larger feeder opening, wider 1000 mm feeder belt, and hopper capacity of up to 6.5 m³ (with extensions) prevent clogging and enable continuous, high-volume processing with minimal downtime.

Superior Screening

The 518T has a large drum (1544 mm diameter, 5752 mm length)

This maximizes material throughput and stratification, ensuring high separation precision for various materials like sand, gravel, and compost.

u003cstrongu003eEnquire About 518Tu003c/strongu003e

Intelligent Power

The CAT C3.6 100kW Stage V engine and load-sensing drum system adjust feeder speed dynamically, boosting fuel efficiency, reducing emissions, and preventing overload for consistent performance.

RANOWORKS 518T MOBILE TROMMEL

This machine is optimized for processing organic materials such as wood chips, compost, and green waste, providing efficient solutions for the growing sustainable energy and recycling sectors.

Features of Ranoworks Trommels

  • Heavy-Duty Build:
  • Robust Design
  • Maximum Throughput

Features of Ranoworks Trommels

Engineered for rugged terrains and high-impact use.

Advanced technology for precise material separation.

Designed with mobility in mind for quick deployment.

Intuitive operation for seamless productivity.

518T SPECIFICATIONS

DETAILS

Drum Diameter

1544 mm

Drum Length

5752 mm

Feeder Belt Width

1000 mm

Hopper Capacity

3 m³ (without extensions) / 6.5 m³ (with extensions)

Collection Belt Width

1200 mm

Oversize Belt Width

1050 mm

Engine

CAT C3.6 100kW Stage V

Drive System

4-Wheel Drive

Oversize Stacking Height

2979 mm

Fines Stacking Height

2934 mm

Additional Transfer Conveyor

500 mm

Drum Control

Load-sensing, feeder speed adjusts automatically

Trommel Brushes

4 independent brushes

Transport

Ships in standard 40ft HQ container

RANOWORKS 518T: Your Organics Processing Powerhouse

Discover the RANO-518T’s cutting-edge features! Download our brochure now to explore how it can transform your material handling efficiency.

View RANO 518T Brochure
