RANO-EVS-270T: Our Unrivalled Heavyweight Champion!
Built to withstand the most extreme job site loads, this double deck twin motor vibration screener is our most powerful model. Delivering a massive output of 50-100 tons per hour, it is the ultimate professional sorting solution.
Maximum Throughput for Extreme Loads
The RANO-EVS-270T sits at the very top of our unrivalled category of screeners. Engineered specifically for professional rental companies and massive construction sites, this screener is built to withstand extreme loads and non-stop daily use. Weighing 2000 kg, it offers unparalleled multi-grade sorting capabilities.
.

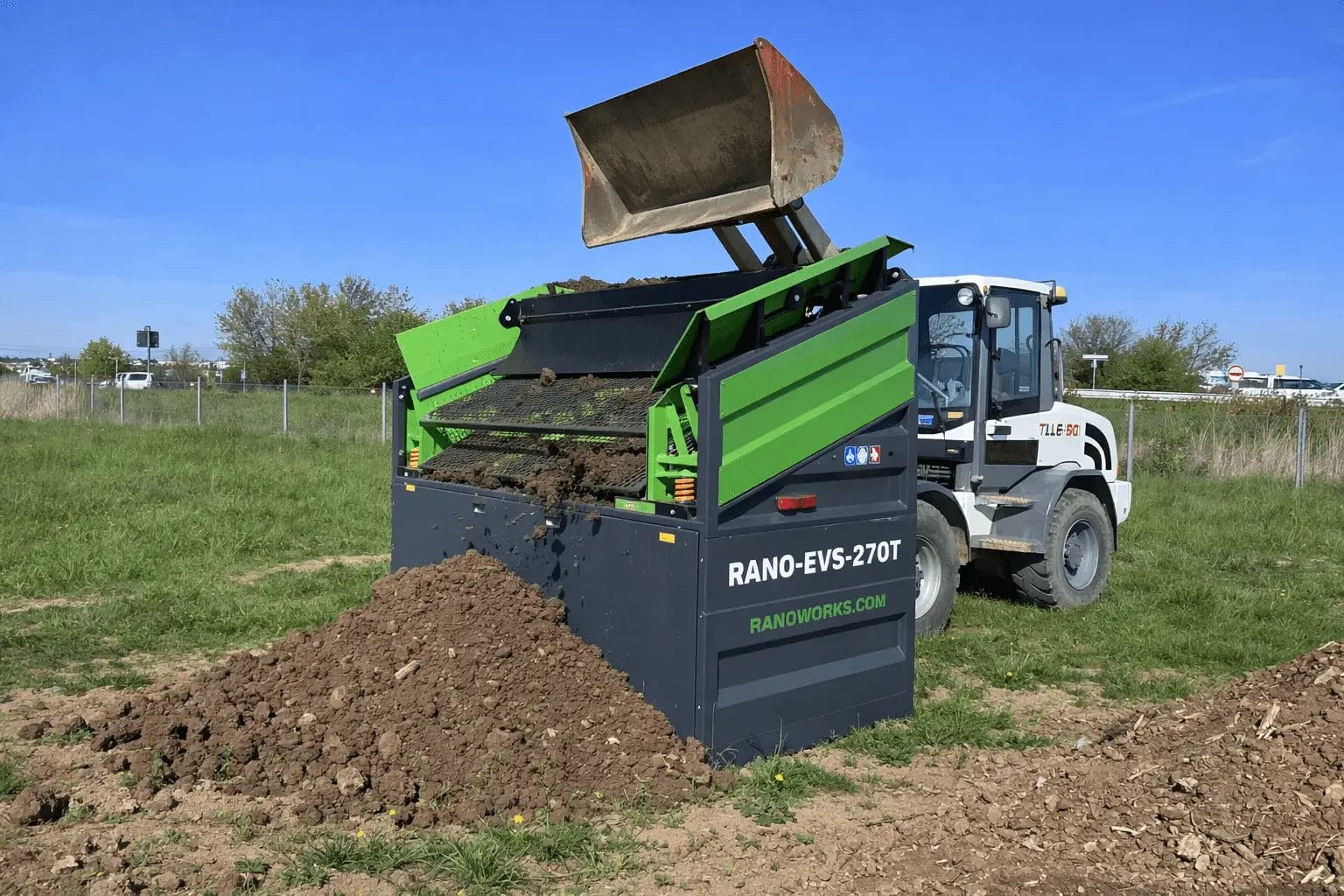

It is optimally matched for loaders with a bucket width of up to 270 cm and a volume of up to 1.5 mยณ. For absolute peak efficiency, we recommend operating this unit with both an excavator (10 to 20 tons) loading the raw material and a large loader hauling away the sorted materials. The robust, bolted bottom frame ensures that even in the toughest environments, you can replace individual damaged parts to save on maintenance costs.
.
- Massive Efficiency: Process an incredible 50-100 tons of material every single hour!
- Double-Deck Design: A massive 2 x 3.6 mยฒ screening area allows you to sort material into several fractions at once.
- Heavy-Duty Power: Operates on a reliable three-phase 400 V / 1.8 kW power supply for consistent twin-motor performance.
- Built for Giants: Perfectly paired with excavators weighing 10 to 20 tons and loaders with bucket capacities up to 1.5 mยณ.
Tech Specs at a Glance
The RANO-EVS-270T is engineered for optimal compatibility with mid-to-large loaders and 10 to 20-ton excavators. Check the exact measurements, transport weight, and power inputs to plan your ideal heavy-duty sorting setup.
RANO EVS-270T SPECIFICATIONS | DETAILS |
Screener Output | 50 - 100 tons/hour |
Max bucket width | 2700 mm |
Max bucket Volume | Up to 1.5 mยฒ |
Screening area | 2 x 3.6 mยฒ |
Power input | 400v / 1.8kW |
Weight | 2000 kg |

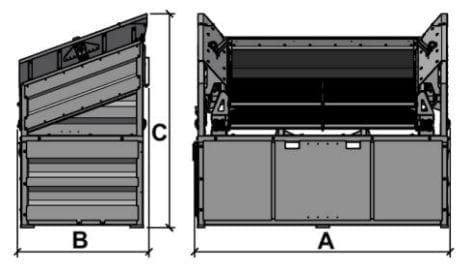

Width (A) | 3090 mm |
Length (B) | 1650 mm |
Height (C) | 2520 mm |
Works With Your Existing Fleet

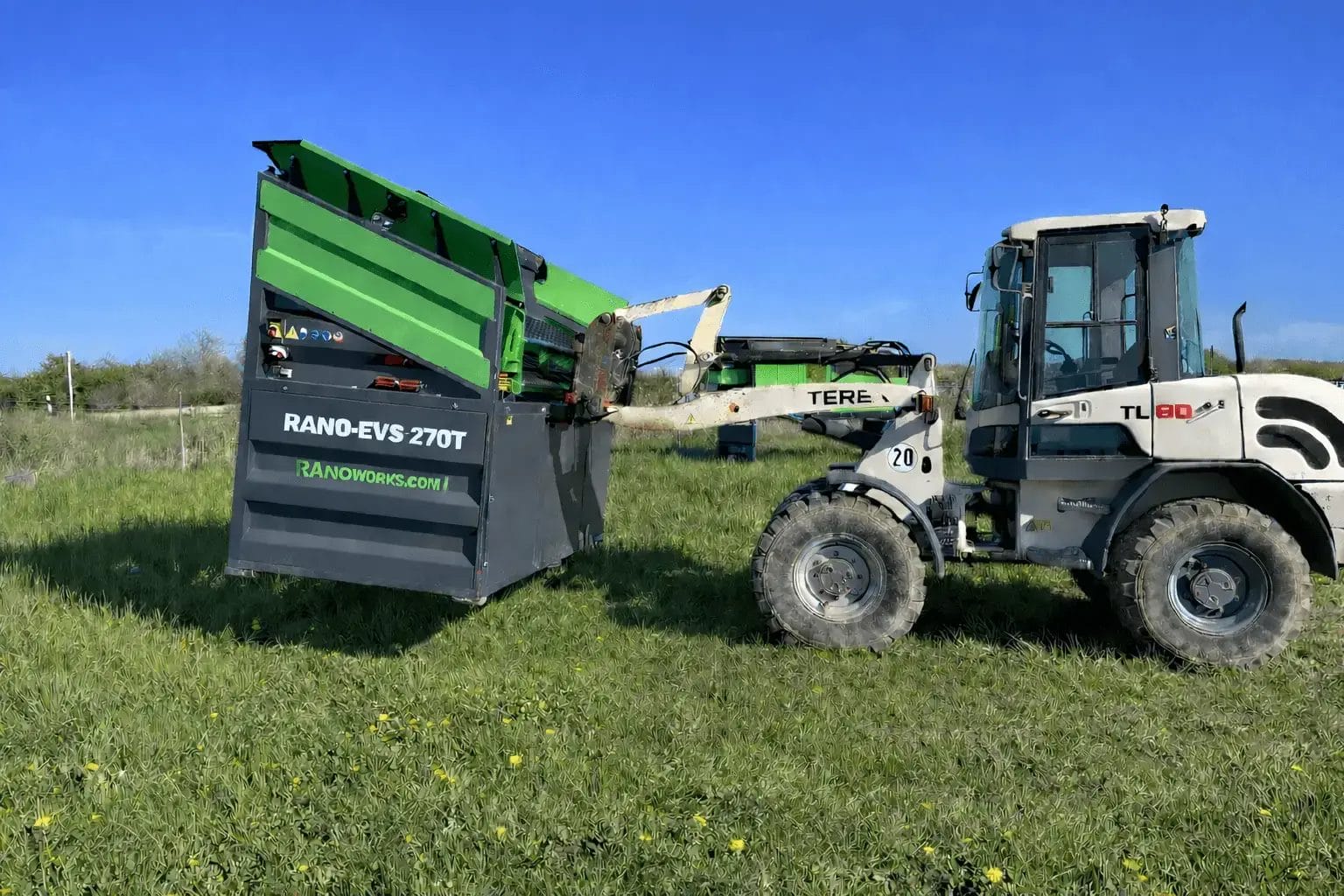

The RANO-EVS-270T is purpose-built to pair seamlessly with mid-to-large wheel loaders and heavy-duty 10 to 20-ton excavators.
.
Customize Your Production Line
Available upgrades include conveyor belts in lengths of 3, 4, 5 and 6 meters , sorters and divider , and other types of the sieves for specific material grading
