RANO-EVS-230T: Unrivalled Double-Deck Screening Power.
Built to withstand extreme loads, this double deck twin motor vibration screener delivers professional-grade throughput of 30-60 tons per hour. Perfect for heavy deployment, multi-fraction sorting, and seamless integration into high-volume job sites
Extreme Output Meets Compact Versatility
The RANO-EVS-230T is in our unrivalled category of screeners, engineered specifically to withstand extreme loads and heavy deployment. Weighing 1400 kg, this robust machine can screen a variety of materials such as topsoil, excavated soil, sand, and rubble. It is perfectly optimized for loaders with a bucket width of up to 230 cm and a volume of up to 0.9 mยณ.
.
To achieve maximum performance, sorting over 500 tons of material per day we recommend operating it with an excavator loading the material & a loader hauling the sorted fractions away. Despite its massive output, it maintains compact dimensions, meaning it can easily be transported on a braked trailer behind a work truck.
.
- High Output: Sort between 30-60 tons of material per hour.
- Multi-Size Sorting: With an expansive 2 x 2.7 mยฒ screening area and optional sorters and divider, you can separate materials into several size grades simultaneously.
- Heavy-Duty & Repairable: The robust, bolted bottom frame design is highly valued by rental companies, as it allows for the replacement of individual damaged parts rather than the whole frame. It can also be seamlessly integrated directly into production or recycling lines.
- 3 Phase Power: Reliable and steady operation powered by a 400 V / 1.5 kW input
Tech Specs at a Glance
The RANO-EVS-230T is designed for optimal compatibility with small loaders and mini-excavators. Check the exact measurements, transport weight, and power inputs to plan your ideal sorting setup
RANO EVS-230T SPECIFICATIONS | DETAILS |
Screener Output | 30 - 60 tons/hour |
Max bucket width | 2300 mm |
Screening area | 2 x 2.7 mยฒ |
Power input | 400v / 1.5kW |
Weight | 1400 kg |

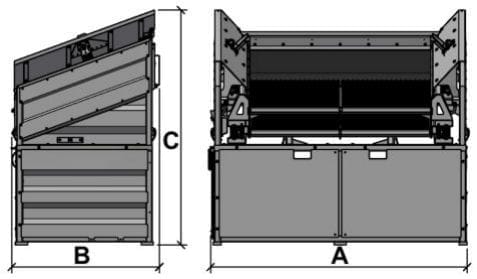

Width (A) | 2550 mm |
Length (B) | 1470 mm |
Height (C) | 2340 mm |
Works With Your Existing Fleet
The RANO-EVS-230T is purpose-built to pair seamlessly with skid steer loaders, wheel loaders, and mini excavators.
.
Maximize the utility of your EVS-230T with custom attachments
Available upgrades include conveyor belts in lengths of 3, 4, 5 and 6 meters , sorters and divider , and other types of the sieves for specific material grading
