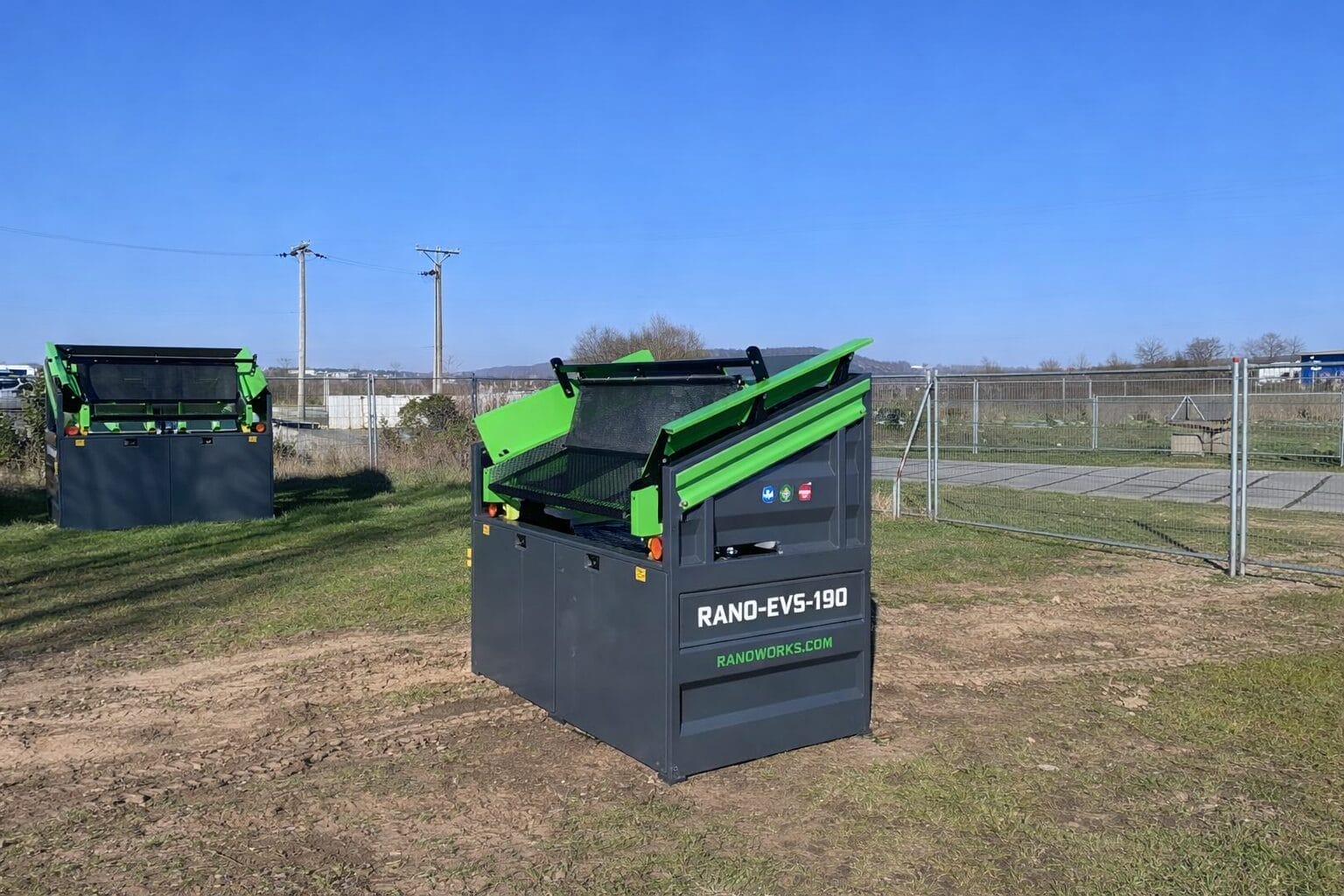

RANO-EVS-190 Electric Vibration Screener: Compact Power, Heavy-Duty Sorting

The ultimate versatile screener for topsoil, sand and rubble. With a robust design and a weight of just 520kg, it delivers professional-grade efficiency up to 20 tons per hour wherever you need it!

Request a EVS-190 Quote

Proven Performance for Any Job Site

Engineered for versatility and proven reliability, the RANO-EVS-190 features a unique, robust design built for heavy deployment, all while maintaining highly compact dimensions.
.

Weighing in at only 520 kg, it is incredibly easy to handle and can be transported simply on a trailer behind a standard work truck. This makes it an ideal choice not just for contractors, but for rental companies as well.
.

  • High Efficiency: Sort up to 10-20 tons of material per hour.
  • Quick Maintenance: Changing the 2 m² sieve is incredibly easy and takes only a few minutes.
  • Flexible Power: Available in single-phase (230 V / 0.4 kW) or three-phase (400 V / 0.6 kW) power supply setups.
  • Adaptable Frame: Can be seamlessly integrated directly into production/recycling lines, supplied with a lowered bottom frame, or customized to your exact requirements.

Tech Specs at a Glance

The RANO-EVS-190 is designed for optimal compatibility with small loaders and mini-excavators. Check the exact measurements, transport weight, and power inputs to plan your ideal sorting setup

Request a EVS-190 Quote

RANO EVS-190 SPECIFICATIONS

DETAILS

Screener Output

10 - 20 tons/hour

Max bucket width

1900 mm

Screening area

2.0 m²

Power input

400v / 0.6kW or 230v / 0.4kW

Weight

520 kg

Width

2100 mm

Length

1300 mm

Height

1970 mm

Works With Your Existing Fleet

The RANO-EVS-190 is purpose-built to pair seamlessly with skid steer loaders, wheel loaders, and mini excavators.



.

  • MINI-EXCAVATORS (3 to 5 tons): Will work with: Kubota KX – 030/037/042 U – 36/50, CAT 303/303.5/304/305, JCB 8026/35Z/36C/50Z, Bobcat E34/E35z/E50z, Komatsu PC 30/35/45, Wacker Neuson ET24/ET35/ET42/EZ26/EZ36/EZ50, Yanmar ViO33/ViO38/ViO50, Volvo EC35/ECR35/40/50.
  • LOADERS: Compatible with: Avant 600/700, Multione 7/8 series, Wacker Neuson WL 32/34, Bobcat S 510/530/550/590/66, Mecalac MCL 8/AS 600, JCB 403/155/175/210/215, Kubota RT 260, CAT 236/246/242/262, Komatsu SK 815/820, Giant 3500, Weidemann 1880/2080, Kramer 5050/5055/5065, Weycor AR 320/AR380.

Scale Your Operations

To achieve even greater performance and efficiency, you can easily expand your RANO-EVS-190 setup with our optional attachments. Customize your workflow by adding conveyor belts—available in lengths of 3, 4, 5, and 6 meters—or swap in other types of sieves to perfectly match the exact materials you are sorting.

View RANO EVS-190 Brochure Enquire about EVS-190
